Hook and pin couplings
AL-KO hook and pin couplings
Our hook and pin couplings are suitable for towing vehicles in the off-road and light commercial vehicle customer groups as well as construction and special agricultural vehicles (backhoe loaders, shovel loaders, telescopic handlers, combines, forage harvesters). These towbars are available in various sizes and versions, in swivelling...
Interested?
Click here to find a dealerDescription
AL-KO hook and pin couplings
Our hook and pin couplings are suitable for towing vehicles in the off-road and light commercial vehicle customer groups as well as construction and special agricultural vehicles (backhoe loaders, shovel loaders, telescopic handlers, combines, forage harvesters). These towbars are available in various sizes and versions, in swivelling and fixed designs with a maximum tensile load of 3.5.
Full details can be found in the catalogues:
Technical data

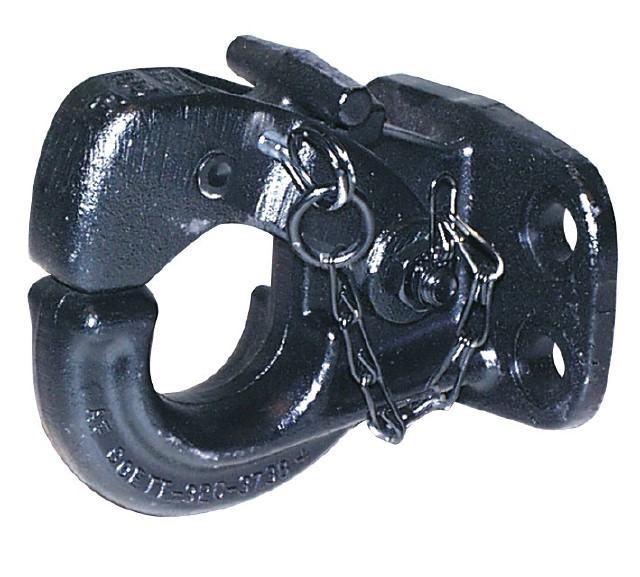

| Hook coupling 32C, 2 holes Ø17, LK 90 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 340 kg |
| Hook coupling 32C, 4 holes Ø11 / 13 / 17, LK 83x56, 85x44, 90x50, 90x40 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 340 kg |
| Combo coupling, 2 holes Ø17, LK 90 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 340 kg |
| Combo coupling, 4 holes Ø11 / 13 / 17, LK 83x56, 85x44, 90x40, 90x50 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 340 kg |
| Pin coupling, 2 holes Ø17 LK 90 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 150 kg |
| Pin coupling, 4 holes Ø17 / 10.5 / 13, LK 90x40, 83x56, 85,7x44,45 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 150 kg |
| Pin coupling, 4 holes Ø15, LK 120x55 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 150 kg |
| Pin coupling, 4 holes Ø17 LK 90x50, 140x80 | |
| Max. tensile load kg | 3,500 kg |
| Imposed load kg | 150 kg |
| Max. tensile load kg | Imposed load kg | |
|---|---|---|
| Hook coupling 32C, 2 holes Ø17, LK 90 | 3,500 kg | 340 kg |
| Hook coupling 32C, 4 holes Ø11 / 13 / 17, LK 83x56, 85x44, 90x50, 90x40 | 3,500 kg | 340 kg |
| Combo coupling, 2 holes Ø17, LK 90 | 3,500 kg | 340 kg |
| Combo coupling, 4 holes Ø11 / 13 / 17, LK 83x56, 85x44, 90x40, 90x50 | 3,500 kg | 340 kg |
| Pin coupling, 2 holes Ø17 LK 90 | 3,500 kg | 150 kg |
| Pin coupling, 4 holes Ø17 / 10.5 / 13, LK 90x40, 83x56, 85,7x44,45 | 3,500 kg | 150 kg |
| Pin coupling, 4 holes Ø15, LK 120x55 | 3,500 kg | 150 kg |
| Pin coupling, 4 holes Ø17 LK 90x50, 140x80 | 3,500 kg | 150 kg |
