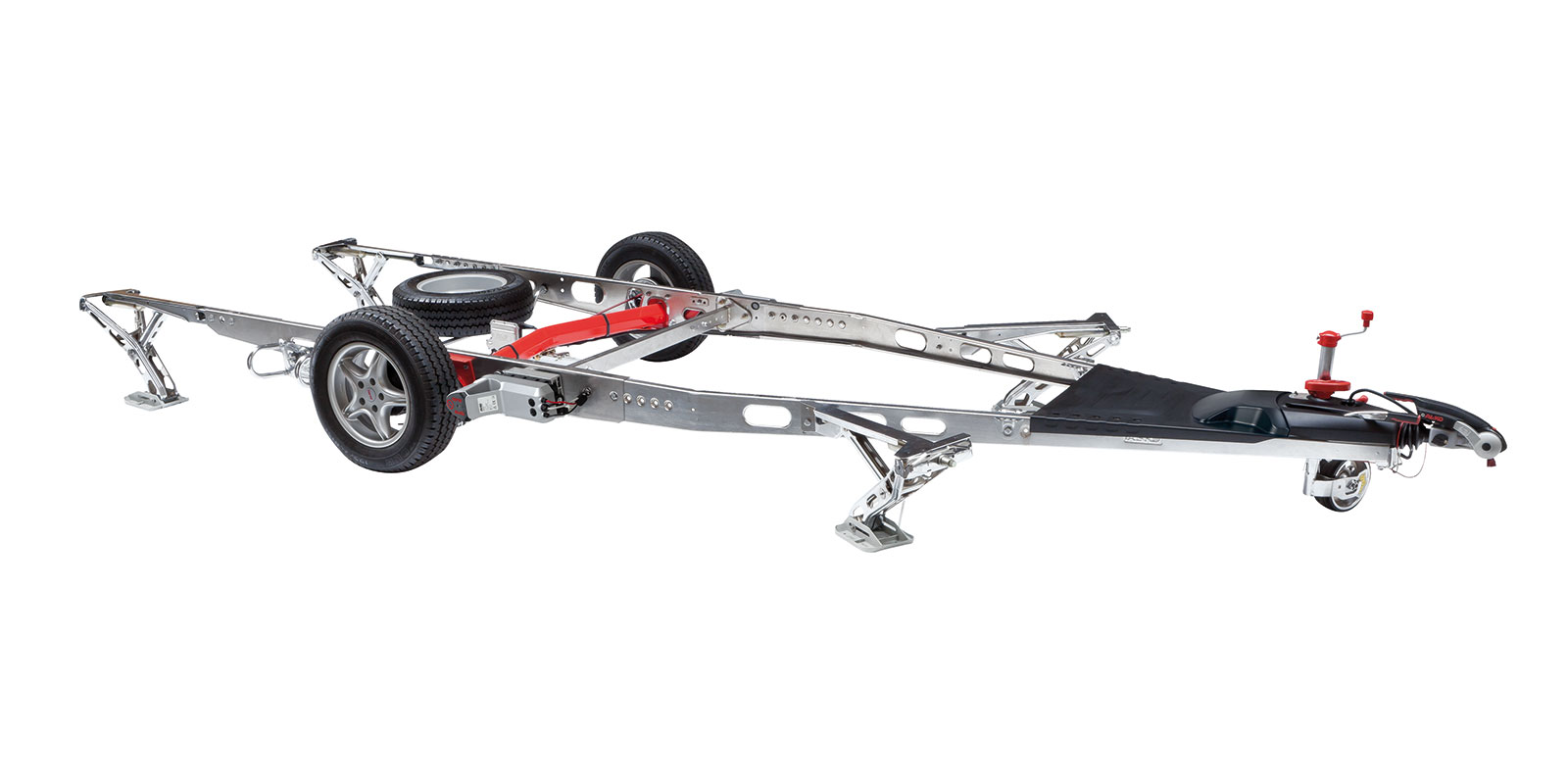

AL-KO lightweight chassis

Optimum driving comfort and safety

The chassis is crucial for optimum driving comfort and safety with a caravan. With our innovative solutions we ensure that your caravan drives well and comfortably on an AL-KO chassis and that you reach your destination safely and stress-free. The AL-KO lightweight chassis is our contribution towards greater payloads.

Your advantage:

Safety first

Maximum safety when cornering, during roll movements, when overtaking, with side and tail wind. Maintenance-free. Proven standard for high-quality caravans for more than 15 years.

We've figured it out

The Delta semi-trailing arm axle acts against centrifugal force: The individual wheels mounted on arms move about the axle located at an angle in space during suspension compression and rebound. The force acting on the wheel on the outside of the corner is transmitted via the swing arm onto the axle stub of the wheel with the effect that it increases its toe-in and negative camber. The wheel braces itself against the centrifugal force, thus supporting the vehicle on the inside.

Hexagonal rubber suspension

As standard for caravans with AL-KO chassis – cannot be retrofitted. Ensures optimum driving behaviour of the caravan. Increased comfort due to long suspension travel. Robust, durable and easy to maintain. Very good shock absorption; the suspension settles down quickly and increases driving safety.
